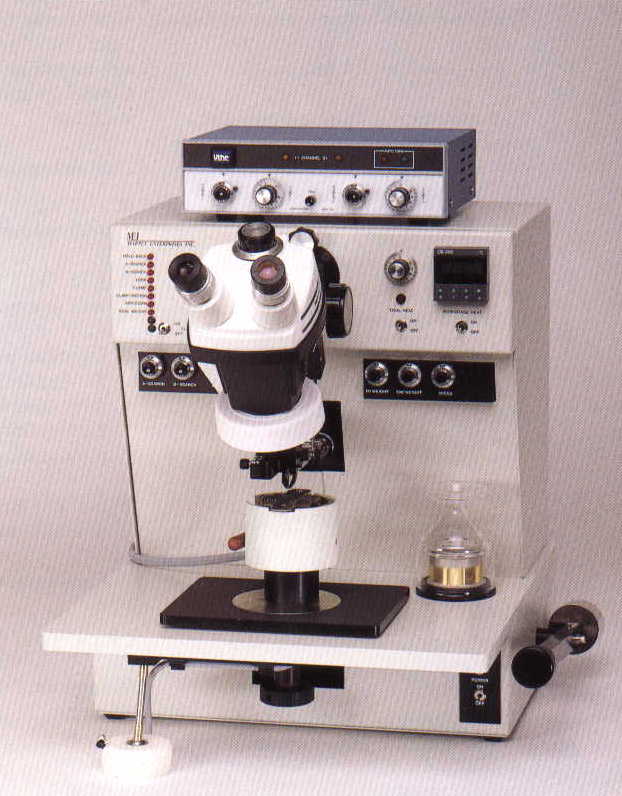

MECH-EL / MEI 1204W
The Mech-El / MEI1204 is available in two configurations The MEI 1204B (Ball Bonder) and MEI 1204W (Wedge Bonder). Both the MEI 1204B and W will handle wire sizes from 0.0007” (17um) to 0.003” (75um) and are available with a full line of work holder and options to fit all applications.
SPECIFICATIONS:
Bonding Processes: | Ultrasonic using aluminum wire. Thermocompression or thermosonic wire bonding using gold wire. |
Wire sizes: | .5 mil - 3 mil wire and ribbon. |
Tip Weight: | 15 - 150 grams. |
Bonding tool size: | 1/16" shank x .828" long. |
Optional- Heated Workstage: | Digital heat control option will regulate temperature from ambient to 300°C +/- 0.5% (dependant upon application). |
Ultrasonics: | Uthe 10G generator with 25PT transducer standard. |
Micropositioner: | 6:1 standard. |
Services: | Electrical: 110-115 VAC, 50/60Hz, 5 amps or
220-240 VAC, 50/60Hz, 2.5 amps. Air: 40 PSI (240 kPa) minimum, if required. Vacuum: 20" (510 mm) Hg minimum, if required. |
Dimensions: | Length: 12.0" (30.5 cm) Width: 18.0" (45.7 cm) Height 17.75" (45.1cm) Net Weight: 50 pounds (23 Kg) |
*Note: Exact dimensions are dependent upon the options on the machine.
