MECH-EL / MEI 709

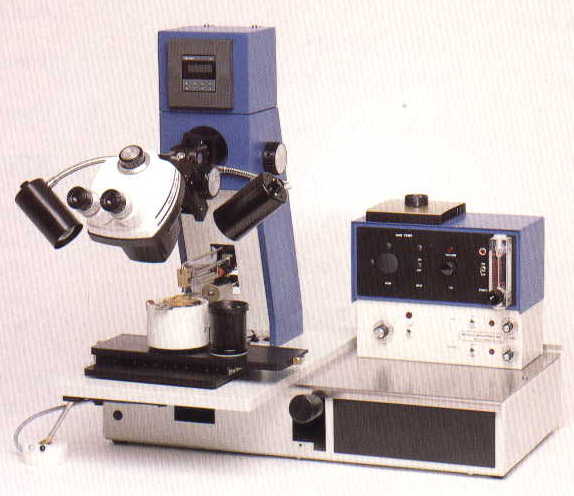

The Mech-El/MEI 709 is a manual eutectic die attacher. The machine comes with a 2 position slide table for die presentation and heated work holder. The MEI 709 uses a unique hot gas head that allows the user to heat the package to a temperature below the wetting temperature of the solder and use the hot gas to bring the localized heat to only the die area to wet the solder or perform.
SPECIFICATIONS:
Mechanical Scrub: | Scrub frequency adjustable from 0 to 100 CPS. Scrub amplitude adjustable from 0 to 100 mils (0 to 2.54 mm). |
Hot Gas Head: | Quartz heater produces 500 degree C. gas. |
Tip Weight: | 0 to 200 grams. |
Collet Mount: | Cold or heated tool holder. Tool temperature from 25 to 400°C. |
Multi-Collet: | Manually select between one or four tools. |
Hot Gas/Scrub Timers Option: | Individual time adjustment from 0 to 3 seconds. |
Chip Dish: | 2" diameter mirror die dish and 2" x 2" Fluoroware carrier. Slide travel is 3" (7.62 cm) standard. |
Micropositioner: | 6:1 standard. |
Heated Workstage: | Regulated temperature from ambient to 500 degrees C. |
Services: | Electrical: 110-115 VAC, 50/60Hz, 10 amps or
220-240 VAC, 50/60Hz, 5 amps. Air: 20-80 PSI (50-230 kg/cm2) (Filtered) Vacuum: 20" (510 mm) Hg minimum Cover Gas: 20 PSI (60 kg/cm2) |
Dimensions: | Length: 23" (58.4cm) Width: 18" (45.7cm) Height 17.75" (45.1cm) Net Weight: 40 pounds (18 Kg) |
*Note: Exact dimensions are dependent upon the options on the machine.
